FCP-7163 is a low-halogen flame retardant composite designed to provide the best possible performance to meet the flame retardancy standards of PP UL94 V-2 and FMVSS-302 by synergism of low amount of brominated FR and radical initiator contained in FCP-7163 even without antimony trioxide. It can comply to 850ppm of RoHS halogen-free standard if the loading level is 5% or less.
1. Melamine polyphosphate (Main component)
2. Radical initiator
3. Brominated flame retardant

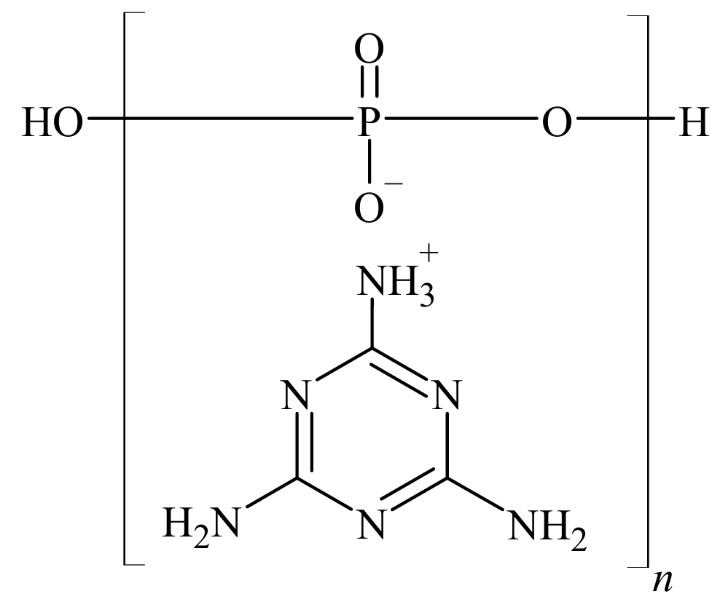

Melamine polyphosphate
| Appearance Phosphorous Content Nitrogen Content Bromine Content Volatiles |
White Powder ca.10% ca.37% ca.1.3% ≤0.5% |
Polypropylene
25kg net paper bag
| PP (MI=11) | 95.0 | 94.5 |
| FCP-7163 | 5.0 | |
| Brominated flame retardant FCP-680 | 4.0 | |
| Antimony Trioxide AT3 | 1.5 | |
| Oxygen Index | 25.0 | 24.5 |
| UL94 3.0mm 1.5mm 0.8mm |
V-2 V-2 V-2 |
V-2 V-2 V-2 |
